Hydraulic Dredger Professionally Cleans Lakes With Relatively Low Rock And Hard Debris Content
1. About Hydraulic Dredgerr:
Leader Dredger series dredgers are self-propelled or non-self-propelled portable Hydraulic Dredgers. Its hull can be easily disassembled and reassembled by a box-shaped structure equipped with a horizontal displacement device, a cutting ladder lifting device, a spike device and a carrier, an anchor arm, a deck crane, etc. It is widely used in sand excavation, river dredging, dredging, river reclamation, land and port construction, etc.
1. We sign a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customer's request.
3. We send engineer to assemble and test the machine within the period as agreed in the agreement.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price.
7. We make an excellent filing of customers for long-term following-up service.
2. Leader Dredger will provide before selling the sand Hydraulic Dredger:
1. Consulting and design services
2. Provide program support based on customer's working conditions
3. Provide accessories recommendations based on customer requirements
4. Site installation guide
5. Overall debugging
6. Pre-job training
7. Tracking guidance service
8. Provide one year after-sales
9. Provide permanent accessories or consulting services
3. Leader Dredger LD4500 Hydraulic Dredger Technical Specifications
A . Dredging Features
| Standard dredging depth(m) | 15m |
| Maximum mixture capacity(m/h) | 4500m³/h |
| Solid capacity(approx) | 900m³/h |
| Dredging pump mode | 550/500mm |
B . Principal characteristics
| Overall length(m) | 38.5m |
| Breadth(m) | 7.8m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 2000m |
| Total dry weight approx(MT) | 200MT |
| Ladder length | 21m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 4500m³/h |
| Solid capacity(approx) | 900m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT 3512C 955kw |
| Auxilary engine | CAT C9.3 325KW |
| Total fuel consumption | ≤205kg/hr |
| Extra emergency generator set | 30kw(40Hp) |
4. Hydraulic Dredger Desgin
1. Hydraulic pumps drive cutter, winches spud rams
2. Main engine drives pump through gearbox
3. Pump inside engineroom
4. Design of high production long distance and reliability, easy control, simple maintenance
5. Australian technology pump
6. Famous European-brand electric system and hydraulic system
7. Engine room big and cool, and easy to maintain
8. Dredge can be equipped with several options
9. Such as:Anchor booms/Spud carriages/Increasing The Dredging Depth
10. Self-Propell/Pump Booster station/GPS dredging System
5. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
6.Leader Dredger Hydraulic Dredger Customer

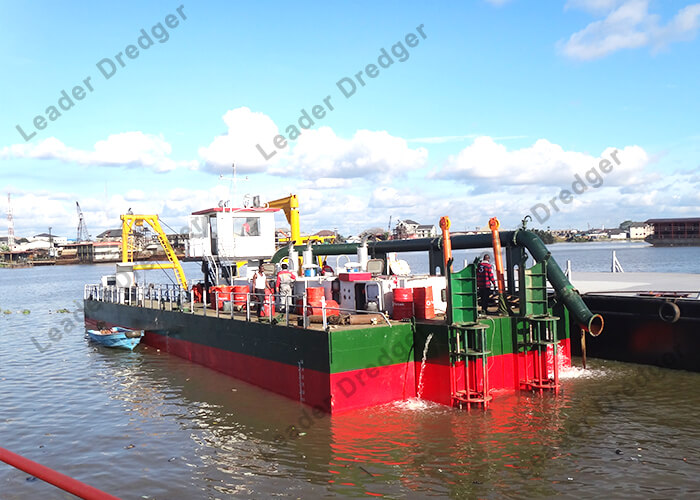

7. LD4500 Hydraulic Dredger
